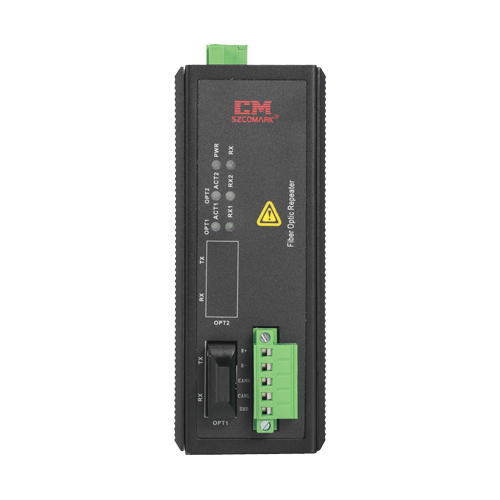

Ci-AF110/AF120/Ci-DF110/120 Series

CAN / CANOpen / DeviceNet Fiber Optic Converter

Provide 1 CAN bus interface
Support CAN2.0B, DeviceNet, CANOpen protocol, communication rate up to 500Kbps
Support 1~2 Fiber Optic Ports, ST connector ( SC, FC Optional)
Provide 6 LED status indicators
Support fiber link monitoring and alarm function
Dual redundant power input with 1500V high voltage isolation
IP40 protection, Metal case, 35mm DIN-Rail Mounting
DIP switch is used to enable 120 Ohm termination resistor
Support -40~75℃ wide operating temperature range
Overview Specifications Models Resources
Overview

Overview of CAN / CANOpen / DeviceNet Fiber Optic Converter

Ci-AF110/AF120/Ci-DF110/120 series is designed for industrial serial to fiber converter which supports transparent transmission for CAN/DeviceNet/CANOpen protocol. This series provides a fiber converter solution to extend transmission distance up to 2KM over multi-mode fiber or 20KM over single-mode fiber. It secures data transmission over EMI resistant fiber at speeds up to 500Kbps. The dual fiber inputs allow connecting multiple devices in a cascade or Daisy-chain topology for fiber redundancy.

Additionally, this series converter provides a fiber link monitoring function to detect the communication errors on both sides of the fiber connection. When a communication error occurs, a red LED status indicator will turn on and the alarm relay contact on the terminal block will activate.

Hardware adopts DIN rail mounting, IP40 metal case, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in various situations like industrial control, process control, traffic control and intelligent residential district, and particularly applicable to bank, electricity, departments and systems that have special requirements relating to electromagnetic interference environment.
Specifications

Specifications of CAN / CANOpen / DeviceNet Fiber Optic Converter

Serial Port 1~2 Port, Interface form: 5.08mm pitch terminal blocks
In line with the recommendations of the organization of CiA and ODVA
Support CAN/DeviceNet/CANOpen bus standard
DeviceNet/CANOpen full rate adaptation, up to 500Kbps
Provide 4000V lightning protection function
120 ohm termination resistor, use corresponding switch to make it to be enable
-40~75℃ wide operating temperature range

 Fiber Port

            Wave length: multi-mode 850nm/1310 nm;  single mode 1310 nm/1550nm
            Fiber type: multi-mode 50/125um, 62.5/125um, 100/140um; single mode 8.3/125 um, 9/125um, 10/125um
            Transmission distance: multi-mode 2km, single mode 20km
            Fiber interface type: ST/SC/FC (optional); ST (standard configuration)
              Single Fiber wavelength:
              A: Transmit wavelength is single mode 1310nm, then Receive wavelength is 1550nm
              B: Transmit wavelength is single mode 1550nm, then Receive wavelength is 1310nm

    Power Supply
    DC (18~36V) dual redundant power input (can be customized with 9~18VDC)
    Industrial standard voltage DC 24V, consumption is less than 1.5W
          DC 1500V voltage isolation and reverse connect protection
          5.08mm industrial terminal port
    Protection
        Relay: Fiber link fault alarm
      Contact rating: 1A @24V DC, Industrial Terminal port
    Mechanical
        Dimensions (H×D×W): 136mm×104.8mm×52.8mm
        Weight: 800g
        Casing: IP40 protection, wave grain aluminum reinforce case option
      Installation: Wall mounting or DIN rail mounting
    Environmental
        Operating Temperature:-40℃~75℃
        Storage Temperature: -40℃~85℃
      Ambient Relative Humidity: 5%~95%(non-condensing)
    Warranty
      5 years
    Models

    Models of CAN / CANOpen / DeviceNet Fiber Optic Converter

    Available Models

    Description

    Ci-AF110

     1 CAN bus port, 1 Fiber Optic port, Single mode / Multi-mode(optional)

     Ci-AF120

     1 CAN bus port,  2 Fiber Optic port, Single mode / Multi-mode(optional)

    Ci-DF110

     1 DeviceNet bus port, 1 Fiber Optic port, Single mode / Multi-mode(optional)

     Ci-DF120

     1 DeviceNet bus port, 2 Fiber Optic port, Single mode / Multi-mode(optional)

    Resources

    Name

    Version

    Date

      Ci-AF110/AF120/Ci-DF110/120 Series Datasheet

    V1.2.0

    2014-10-16
