CK1022/1041/1050 Series

5-port 100M Unmanaged Industrial Ethernet Switch

2~5 fast Ethernet ports, Auto-negotiation speed, Auto Full/Half Duplex Mode
0~2 100BaseFX ports ( SC connector default, FC/ST connector Optional )
Wide range voltage 12~48V DC power input
Metal housing with IP40 protection, support high EMC level
DIN-Rail Mounting and Wall Mounting supported
Support -40~85°C wide operating temperature range
Overview Specifications Models Resources
Overview

Overview of 5-port 100M Unmanaged Industrial Ethernet Switch

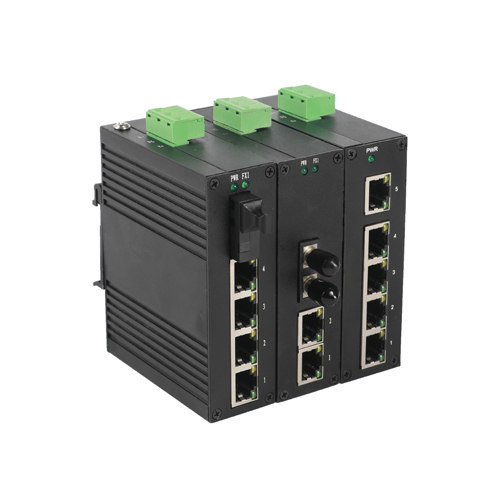

This series are compact type of unmanaged industrial Ethernet switches. This series of switches provide 2~5 10/100Base-T(X) RJ45 and 1~2 100Base-FX optical port. Support Auto-Negotiation and LED indicates. They adopt DIN-Rail mounting to meet the requirements of different application scenes.

The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

    Specifications

    Specifications of 5-port 100M Unmanaged Industrial Ethernet Switch

    Features

    Compliant with IEEE802.3/802.3u standard

    Provide 2~5 10/100Base-T(X) RJ45 interfaces
    Support Auto-Negotiation, Auto-negotiation speed, Auto Full/Semi Duplex, MDI/MDI-X adptive

    Provide one 100Base-FX optical port SC/FC/ST, Max. transmission distance 120KM

    Switching Characteristic

    10M Forward: 14881pps

    100M Forward: 148810pps

    Method: Store and forward

    Width: 1Gbps

    Cache: 448Kbits

    MAC: 1K

    Power Supply

    Input: 12~48V DC

    Empty Load Consumption: 0.24W/1.68W/2.16W@24VDC

    Full Load Consumption: 0.96W/2.16W/2.46W@24VDC

    Internal overcurrent protection

    Physical Characteristic

    Dimensions(W×H×D): 32mm×103mm×83mm

    Weight: 200g

    Housing: Metal, IP40 protection

    Installation: Wall mounting or DIN rail mounting

    Environment Limits

    Work Temp:-40℃~75℃

    Storage Temp:-40℃~85℃

    Relative Humidity:5%~95%(non-condensing)

    Industrial Standard

    IEC61000-4-2 (ESD): Power ±2KV Contact, ±15KV Air
    IEC61000-4-4 (EFT):Power ±4KV, Data Cable ±4KV
    IEC61000-4-5 (Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM
    IEC60068-2-27 (Shock)IEC60068-2-32 (Free Fall)
    IEC61000-6-2 (General Industrial Standard)

    Warranty

    5 years


    Models



    Available Models

    100M Copper Port

    100M Fiber Port

    Optical Mode

     CK1050

    5


    CK1041-W

    4

    1

     Single-mode single fiber 20KM

    CK1041-S

    4

    1

     Single-mode dual fiber 20KM

    CK1041-M

    4

    1

     Multi-mode dual fiber 2KM

    CK1022-W

    2

    2

      Single-mode single fiber 20KM

    CK1022-S

    2

    2

      Single-mode dual fiber 20KM

    CK1022-M

    2

    2

    Multi-mode dual fiber 2KM

    Resources

    Name

    Version

    Date

      CK7220M Series Datasheet

    V1.2

    2022-03-07
