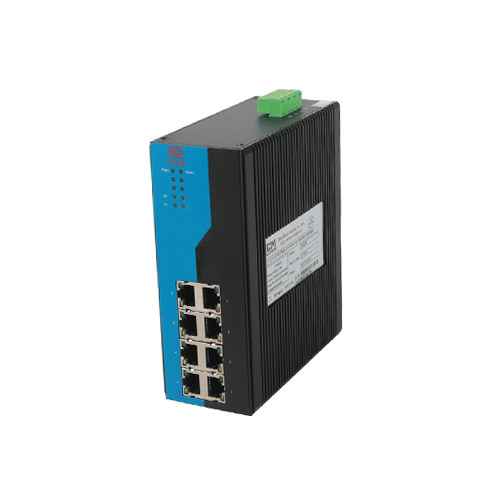

CK2044/2062/2080/2071 Series

8-port 100M Unmanaged Industrial Ethernet Switch/ethernet lan switch/industrial ethernet switch 8 port/ethernet devices

Support 4~8 100M copper ports
Support 0~4 100M fiber ports
Broadcast storm control
High strength metal shell with IP40 protection
EMC industrial level 4 supported
Wide range voltage redundant dual inputs
DIN-Rail Mounting and Wall Mounting supported
Support -40~85°C wide operating temperature range
Overview Specifications Models Resources
Overview

Overview of 8-port 100M Unmanaged Industrial Ethernet Switch

This series are compact type of unmanaged industrial Ethernet switches. This industrial Ethernet Switch/ethernet lan switch/industrial ethernet switch 8 port/ethernet devices provide 4~8 10/100Base-T(X) RJ45 and 0~4 100Base-FX optical port. Support Auto-Negotiation and LED indicates. They adopt DIN-Rail mounting to meet the requirements of different application scenes.

The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Specifications

Specifications of 8-port 100M Unmanaged Industrial Ethernet Switch

Features

Compliant with IEEE802.3/802.3u standard

Provide 2~5 10/100Base-T(X) RJ45 interfaces
Support Auto-Negotiation, Auto-negotiation speed, Auto Full/Semi Duplex, MDI/MDI-X adptive

Provide one 100Base-FX optical port SC/FC/ST, Max. transmission distance 120KM

Switching Characteristic

10M Forward: 14881pps

100M Forward: 148810pps

Method: Store and forward

Width: 1Gbps

Cache: 448Kbits

MAC: 1K

Power Supply

Input: Wide DC power input 12~48VDC (12V/24V/48V typical) with 7.62mm industrial power terminal

No-load Consumption:< 0.48W (@24VDC)

Full-load Consumption:< 4.8W (@24VDC)

Physical Characteristic

Dimensions(W×H×D): 50mm×150.5mm×125.5mm

Weight: 900g

Housing: Metal, IP40 protection

Installation: Wall mounting or DIN rail mounting

Environment Limits

Work Temp:-40℃~85℃

Storage Temp:-40℃~85℃

Relative Humidity:5%~95%(non-condensing)

Industrial Standard

IEC61000-4-2 (ESD): Power ±2KV Contact, ±15KV Air
IEC61000-4-4 (EFT):Power ±4KV, Data Cable ±4KV
IEC61000-4-5 (Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)
IEC61000-6-2 (General Industrial Standard)

Warranty

5 years


Models



Available Models

100M Copper Port

100M Fiber Port

CK2044

4

4

CK2062

6

2

 CK2071

7

CK2080

8


Resources

Name

Version

Date

  CK20xx Series Datasheet

V1.2

2024-08-27
